EmoConnect - PPG&Motion
Wristband device for real-time, high-precision biosignal measurement
Contact us for pricing
EmoConnect - PPG&Motion provides hardware and software capable of simultaneously measuring photoplethysmography (PPG), accelerometer, gyroscope, and magnetometer signals.
Download the EmoConnect User Manual
Newert's EmoConnect - PPG&Motion provides hardware and software capable of simultaneously measuring photoplethysmography (PPG), accelerometer, gyroscope, and magnetometer signals.
The device measures PPG signals at a 50 Hz sampling rate using reflective photoplethysmography.
The motion sensors also provide a 50 Hz sampling rate.
Bluetooth Low Energy 5.0 enables data collection on multiple operating systems, including Android and iOS.
EmoConnect simultaneously monitors biosignals and motion.
EmoConnect - PPG&Motion monitors a user's biosignals and motion in real time. Its primary purpose is to provide Raw Data to researchers and developers.
Photoplethysmography (PPG) sensor
Inertial Measurement Unit (IMU) sensor
The PPG sensor detects changes in blood volume, while the IMU sensor collects motion data. These Raw Data can be used for a variety of research and development purposes. SDKs are provided so researchers can customize their applications.
Supported operating systems: Android, iOS, Windows, and Linux.
EmoConnect Features
Bluetooth 5.0 compliant
PPG data graph
IMU data graph
Measured-data storage and transfer

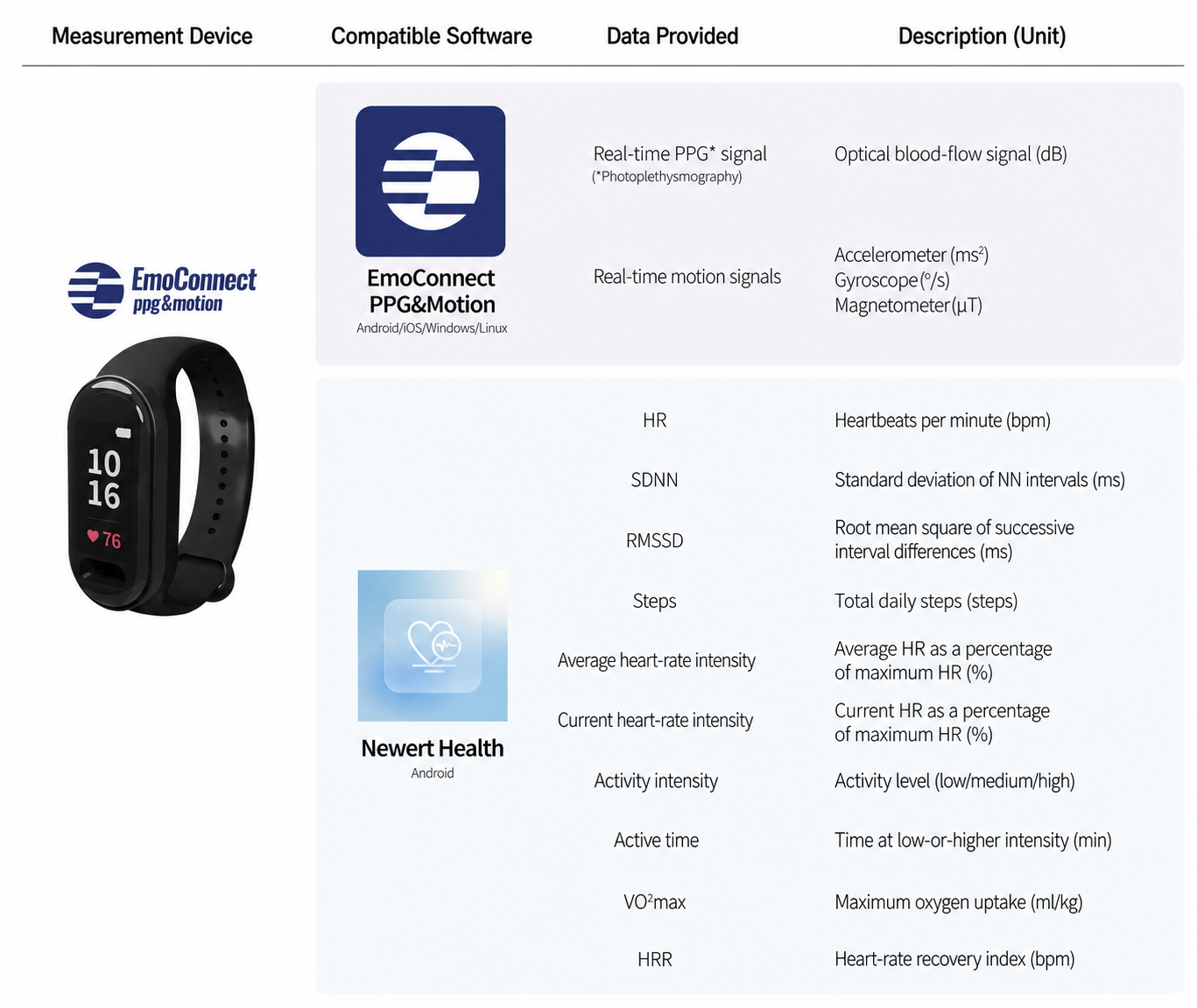

Provides 10 Types of Biosignal Data
EmoConnect - PPG&Motion provides 10 types of biosignal and motion data.
PPG data
9-axis IMU
3-axis accelerometer
3-axis gyroscope
3-axis magnetometer
Technical Specifications
EmoConnect - PPG&Motion
*Battery runtime may vary depending on environmental and operating conditions, including LED intensity and charge level.
Learn More About EmoConnect PRO
Subscribe to EmoConnect PRO to access additional features.
*EmoConnect PRO is currently available only on Windows and Linux.
Specifications
| Model | EmoConnect - PPG&Motion |
|---|---|
| Signals measured | PPG: 1 channel; motion sensors: 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer |
| Sampling frequency | PPG: 50 Hz; motion sensors: 50 Hz |
| Power input | USB-C |
| Operating voltage | 3.3 V |
| Battery terminal input | 3.3–5.5 V |
| USB-C input | 4.45–6.45 V |
| Dimensions (mm) | 20.9 (W) × 46.5 (D) × 13.5 (H) |
| Weight | Approx. 11 g |
| Charging time (fully discharged) | Approx. 2 hours (140 mAh battery) |
| Continuous runtime | Approx. 9 hours (140 mAh battery) |
| Buttons | Capacitive touch button and physical reset button |
| Operating temperature | −40 to 85°C |
| Wireless communication | Bluetooth 5.0 compliant (BLE) |
