Primary use
Individual and group metrics
Review measurement status and supported heart, HRV, activity, and fitness metrics for connected participants.
Apps · Newert Health
Newert Health
An app for connecting supported devices, monitoring individual and group biosignals, and reviewing period trends, analysis reports, and raw or biomarker CSV files.
Product overview
What does it measure and what do you get?
Interfaces
Mobile app + web console
Connect devices in the mobile app, then monitor multiple participants and detailed results in the web console.
Availability
With EmoConnect PRO
Newert Health is not a separate free edition. It is used with an active EmoConnect PRO subscription.
Designed for these workflows
Principal investigators
Use it when you need one view of measurement progress and key biomarkers across multiple participants.
Field operators
Use it to check participant connections, battery, measurement status, and supported route information during a session.
Data analysts
Use it when raw sensor files and calculated biomarker files must be separated for downstream analysis.
How to measure
Use Newert Health in five steps
Follow the actual mobile and web-console flow. Available metrics may vary with the connected device and measurement conditions.
Before you start · Prepare these four items before measuring
Supported device
Review the available EmoConnect, BioLink Band, or Apple Watch connection option in the app. Available metrics vary by device.
PRO account
Sign in with a Newert Health account that has active EmoConnect PRO access.
Bluetooth and permissions
Enable Bluetooth and allow the nearby-device permissions required by the operating system. Review location permission if route features are needed.
Group and participant IDs
For multi-user monitoring, add participants to the same group and prepare non-identifying participant codes.

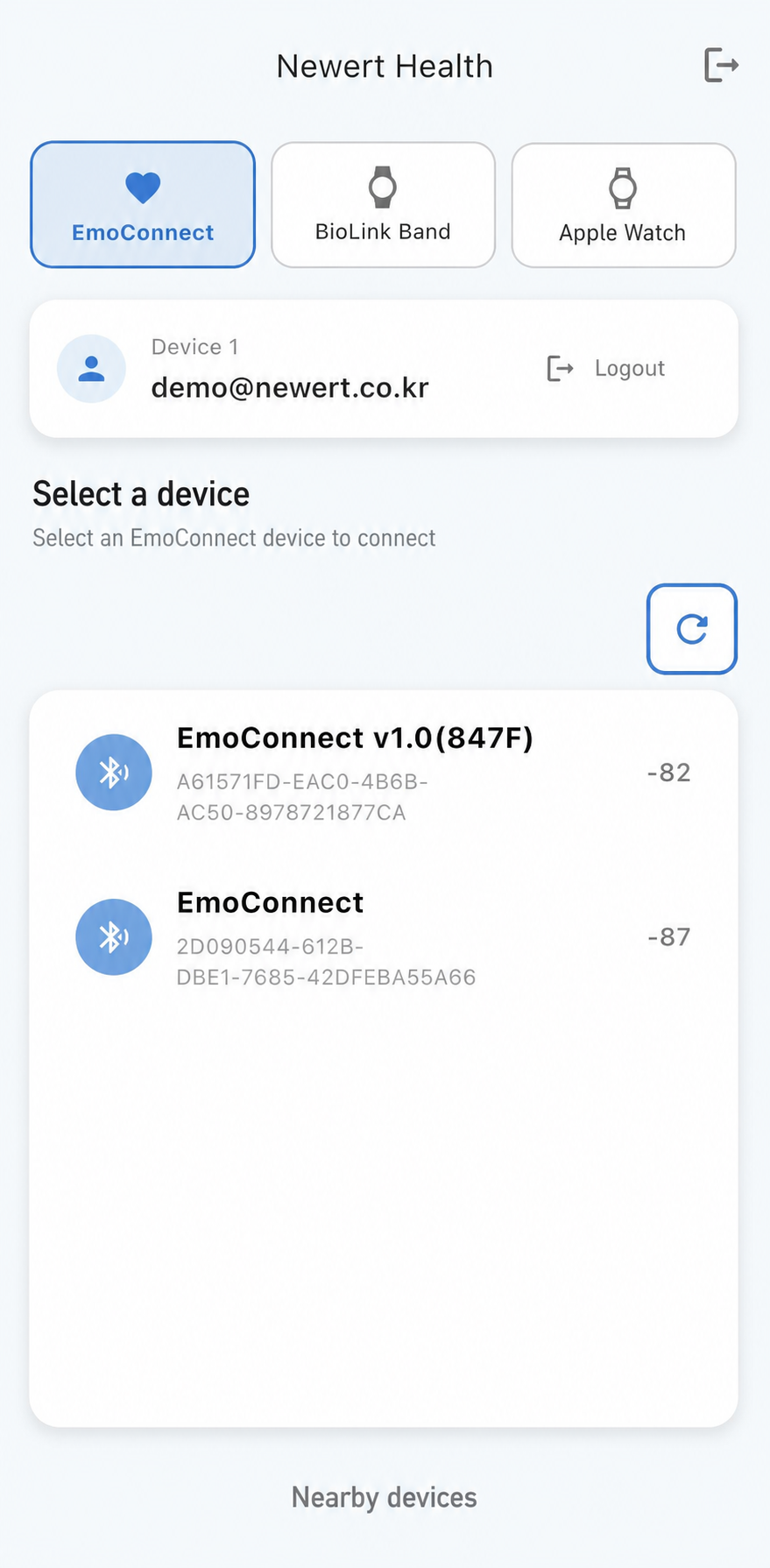

- STEP 1
Sign in and select a device
Choose the device type in the Newert Health mobile app and refresh the nearby-device list. Confirm the target device name before connecting.
- Make sure the device is powered on and nearby
- Disconnect it from any other phone or program
- Record the device name and participant code
The public example uses an anonymous account. Device identifiers are shown only as demonstration values. - STEP 2
Review live group measurement status
Use Live overview to check each participant's connection, battery, heart rate, RMSSD, steps, and activity intensity in one place.
- Separate Measuring from Disconnected status
- Prioritize devices with low battery
- Use name search and Measuring first sorting
View measurement progress and key metrics as tiles or a table. - STEP 3
Open participant metrics and the route view
Select a participant to review heart rate, SDNN, RMSSD, SpO₂, temperature, activity metrics, and a supported route view.
- Confirm the selected participant code
- Check the unit and measurement time for each metric
- For route data, verify location permission and GPS reception
Available fields depend on the connected device, sensors, and measurement conditions. - STEP 4

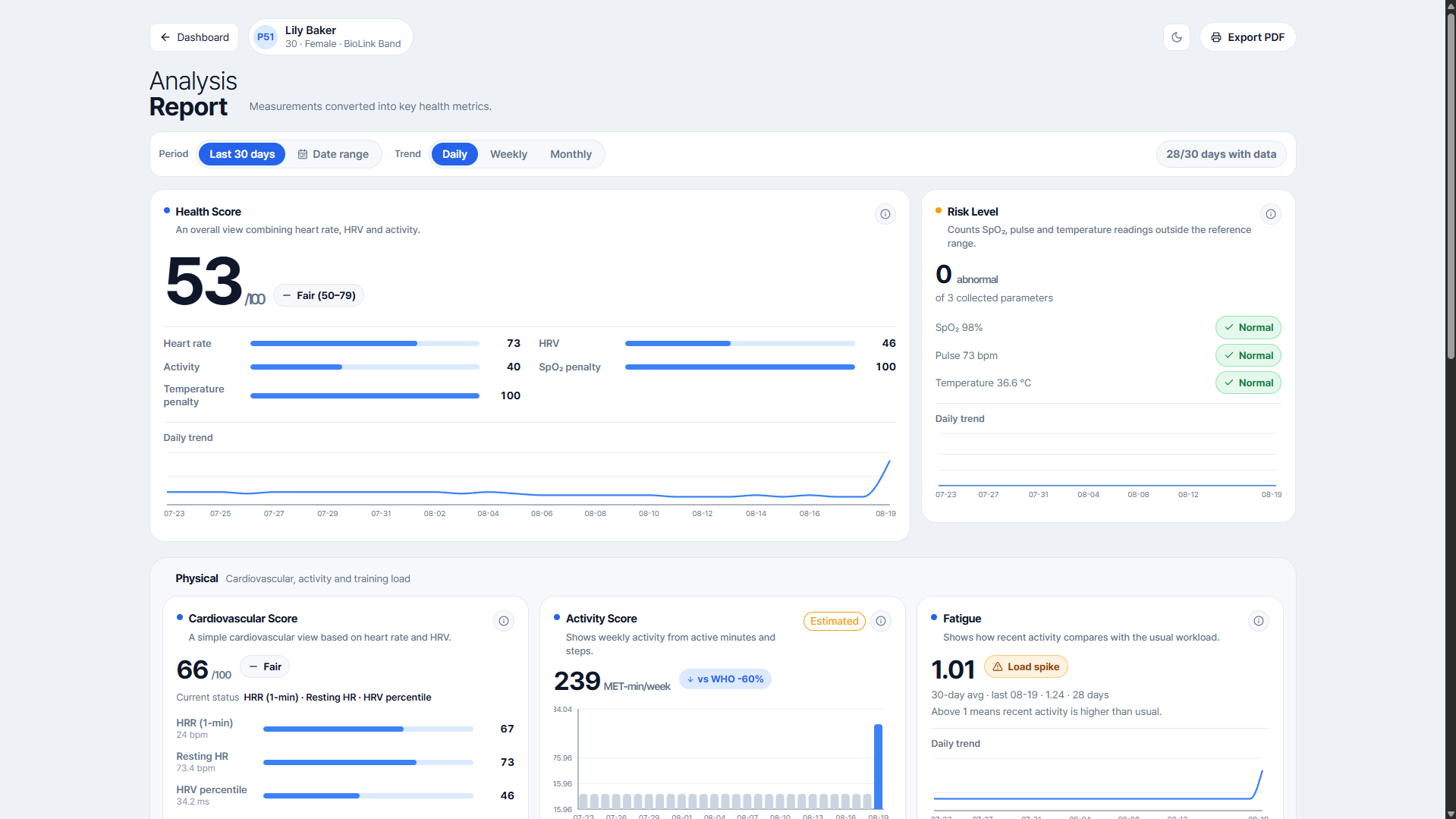

Review trends and the analysis report
Select measured days in the calendar and compare daily, weekly, or monthly changes in heart, HRV, SpO₂, temperature, activity, and fitness metrics. Open the analysis report when enough data is available.
- Confirm that the selected period contains valid measurement days
- Separate average, maximum, minimum, and first-to-last change
- Treat scores and risk summaries as measurement summaries, not diagnoses
Change the period and metric tabs to compare trends. - STEP 5
Save the CSV required for downstream analysis
In Settings, check whether local raw-sensor and biomarker CSV saving are enabled. The raw and PRO biomarker files serve different purposes, so review the comparison and samples below.
- Confirm storage permission and file location
- For biomarker CSV files, confirm active PRO access
- Review headers, units, and missing values before analysis
Download
Review a sample file first
Check the file structure, columns, and units before measuring so that you can prepare your analysis pipeline in advance.
Basic Raw Data CSV sample
Preview the structure used to store PPG and nine-axis IMU data on one timeline.
Included fields
Time · PPG · ACC x/y/z · Gyro x/y/z · Mag x/y/z · event
This anonymous sample contains only a few rows. Actual values vary with the connected device and measurement conditions.
Download basic CSV samplePRO biomarker CSV sample
Preview the calculated heart, HRV, activity, and fitness metric structure.
Included fields
heartRate · sdnn · rmssd · spo2 · temperature · steps · vo2max · hrr · battery
This is an anonymous demonstration file. Available fields may vary by device and version.
Download PRO CSV sampleData example
These values are stored in the CSV
The anonymous values below demonstrate the file structure. Scroll horizontally to review every sensor column.

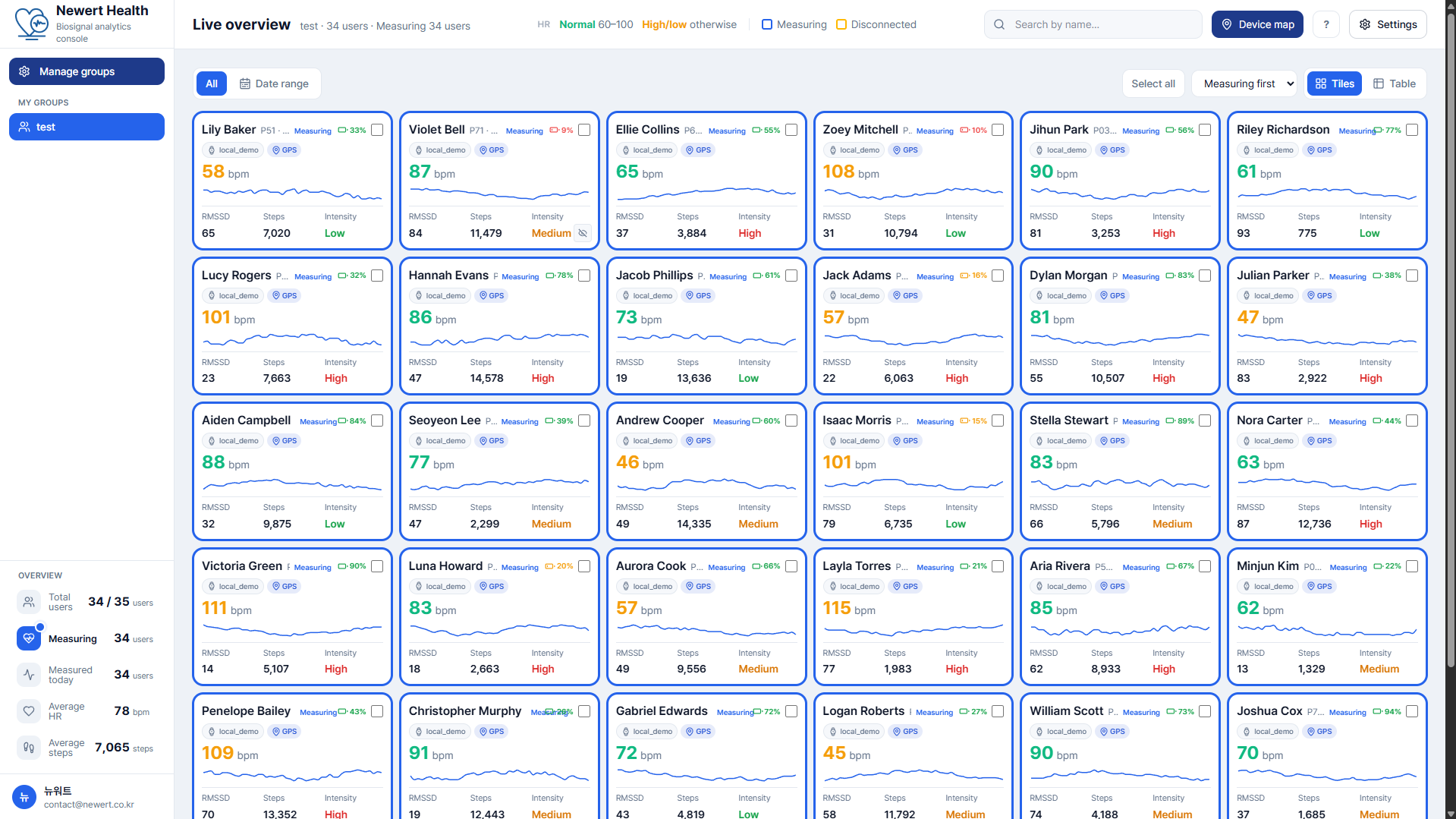

Live group overview
Review participant connection, measurement status, battery, and key metrics together.

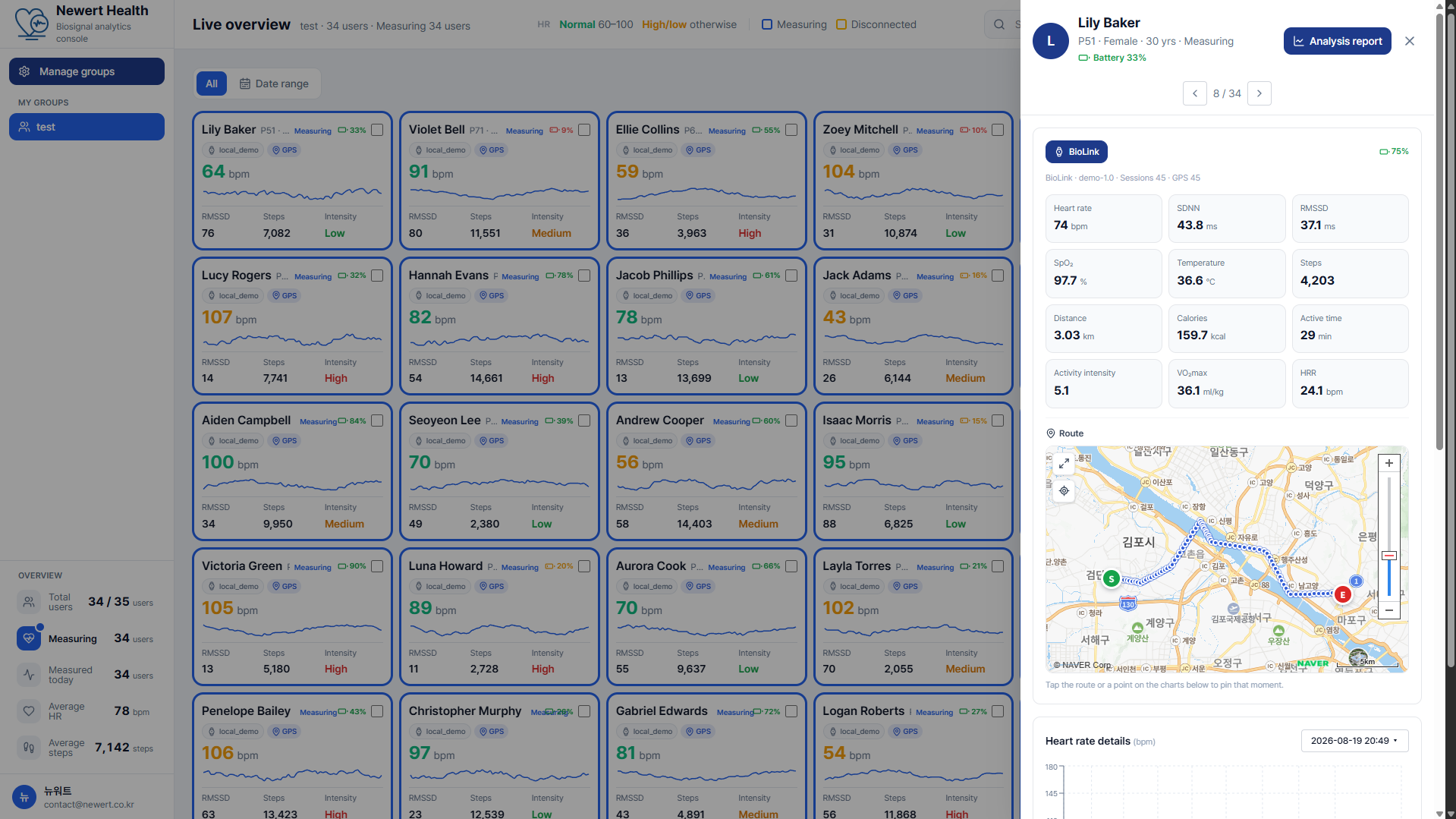

Participant details and route
Review individual biomarkers, activity metrics, and a route when location data is enabled.

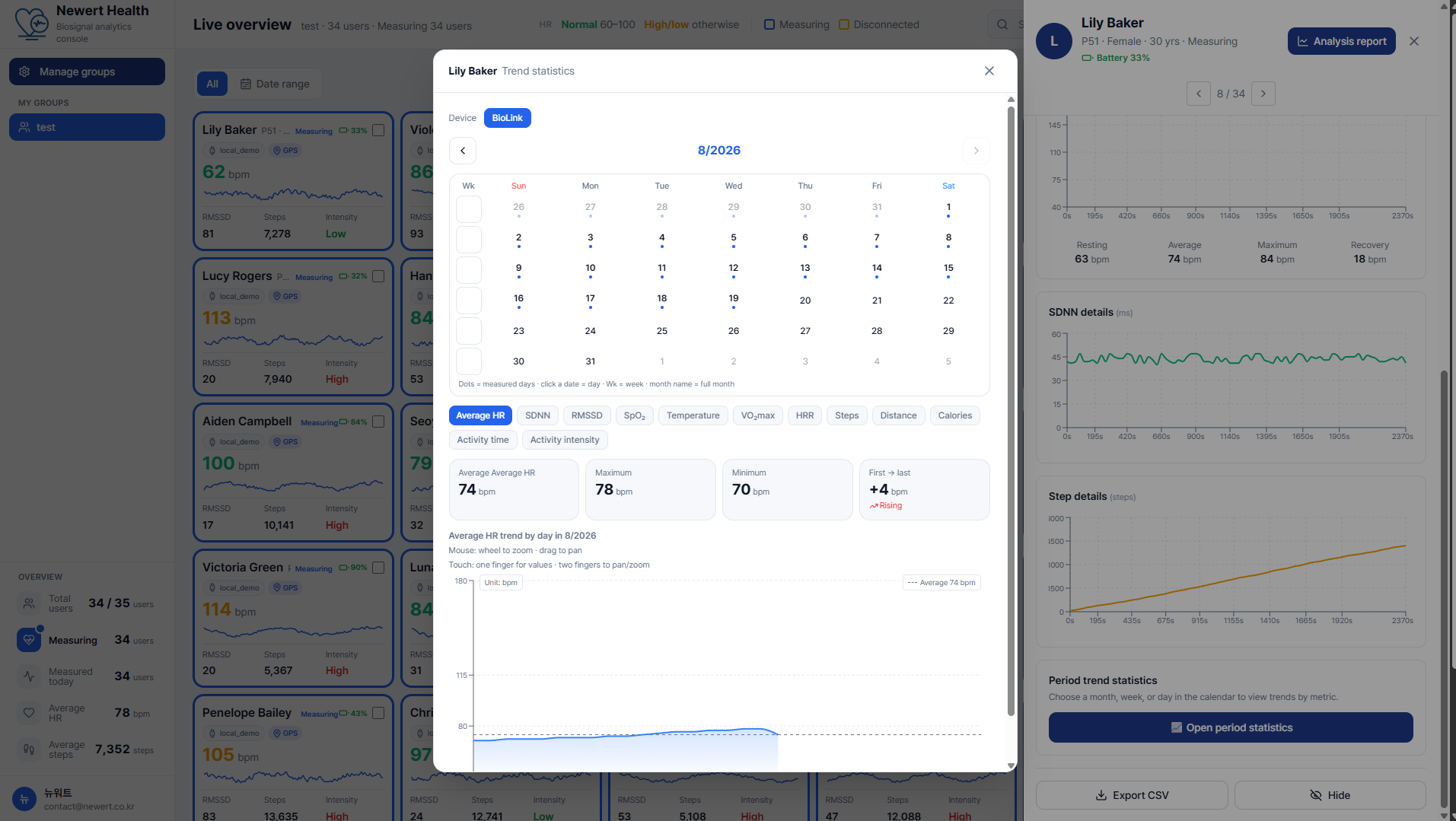

Period trends and analysis report
Review daily, weekly, or monthly changes and summaries for health, cardiovascular, activity, and fatigue metrics.
Raw Data CSV
Store PPG with accelerometer, gyroscope, and magnetometer values on one timeline.
PRO biomarker CSV
Store calculated heart, HRV, SpO₂, temperature, activity, and fitness metrics.
Basic Raw Data CSV example rows
PPG, nine-axis IMU, and event values share the same time row. Use this structure for custom preprocessing or your own algorithms.
| Time (s) | PPG (dB) | ACC x | ACC y | ACC z | Gyro x | Gyro y | Gyro z | Mag x | Mag y | Mag z | event |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.02 | 24119.000 | -0.105 | 0.858 | 9.727 | -0.022 | -0.011 | -0.010 | -50.531 | -7.348 | 8.398 | 0 |
| 0.04 | 24121.918 | -0.106 | 0.907 | 9.721 | -0.030 | -0.024 | -0.010 | -50.363 | -7.078 | 8.298 | 0 |
| 0.10 | 24130.673 | -0.107 | 1.054 | 9.706 | -0.053 | -0.063 | -0.012 | -49.858 | -6.271 | 7.995 | 1 |
PRO biomarker CSV example rows
Calculated heart, HRV, activity, and fitness metrics are shown by time. Available fields vary by device and purchased scope.
| Time | Elapsed (s) | heartRate | sdnn | rmssd | spo2 | temperature | steps | distanceKm | calories | activeMinutes | activityIntensity | vo2max | hrr | avgHrIntensity | currHrIntensity | battery |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13:31:10 | 7.0 | 84.97 | 44.35 | 32.66 | 97.8 | 36.6 | 0 | 0.000 | 0.0 | 0 | Low | 23.17 | 24.10 | 42.0 | 42.0 | 74 |
| 13:31:11 | 8.0 | 72.52 | 44.35 | 32.66 | 97.8 | 36.6 | 2 | 0.001 | 0.1 | 0 | Low | 23.17 | 24.10 | 39.0 | 36.0 | 74 |
| 13:31:14 | 11.0 | 79.62 | 44.35 | 32.66 | 98.0 | 36.6 | 10 | 0.008 | 0.5 | 0 | Low | 23.17 | 24.10 | 38.0 | 40.0 | 75 |
Separate raw data from PRO biomarkers
Newert Health is used with EmoConnect PRO. In this table, Basic refers to the raw sensor data available from a standard measurement, while PRO adds a separate calculated-metrics file.
OutputBasic raw dataAdded with PRO
- PPG and 9-axis IMU
- Basic raw dataPPG, accelerometer, gyroscope, magnetometer, and events
- Added with PROAvailable together with raw data
- Heart and HRV
- Basic raw dataAnalyze the source signal yourself
- Added with PROCalculated HR, SDNN, RMSSD, and related metrics
- Activity and fitness
- Basic raw dataSource accelerometer and related signals
- Added with PROSteps, distance, calories, active time, intensity, VO₂max, and HRR
- Additional measurements
- Basic raw dataSource output from the connected sensor
- Added with PROSpO₂, temperature, battery, and other supported fields
- Best for
- Basic raw dataCustom preprocessing and algorithm research
- Added with PROFaster dashboard review and downstream analysis of calculated metrics
Before contacting support
Check these items in order
The target device does not appear in the nearby list
- 1.Check device power and battery.
- 2.Check Bluetooth and nearby-device permission on the phone.
- 3.Disconnect the device from any other phone or program.
- 4.Move the device closer and refresh the list.
The device is connected but some metrics are blank
- 1.Confirm that the participant is in Measuring status.
- 2.Check sensor contact and allow time for signal stabilization.
- 3.Confirm that the connected device supports the metric.
- 4.Confirm that the period contains enough valid data.
The biomarker CSV is not saved
- 1.Confirm that local biomarker CSV saving is enabled in Settings.
- 2.Confirm that the account has active EmoConnect PRO access.
- 3.Check file permission and available storage.
- 4.After ending the measurement, check the generated session files again.
A participant or location is missing from the group view
- 1.Confirm that the participant joined the correct group.
- 2.Check network access in both the mobile app and web console.
- 3.Check measurement status and the last received time.
- 4.For location data, check operating-system permission and GPS status.
Frequently asked questions
Are there separate free and PRO editions of Newert Health?
No. Newert Health is a PRO-only app used with an active EmoConnect PRO subscription. The Basic column in the comparison refers to the raw sensor output from a standard measurement.
Can every connected device provide every metric shown here?
No. Available metrics vary by device, sensor configuration, permissions, app version, and measurement conditions. Confirm the device and required metrics before deployment.
Should I use the raw or biomarker CSV?
Use raw data when you need your own filtering or algorithm development. Use the PRO biomarker CSV when you need calculated heart, HRV, activity, and related metrics for immediate analysis.
Can I measure without using group location?
Measurement and location serve different purposes. Decide whether location is needed for your operating scenario. Some operating systems may display related permission prompts during Bluetooth discovery.
Can the analysis report be used for medical diagnosis?
No. The scores and reports summarize measurements for research and monitoring support. They do not replace medical diagnosis or treatment decisions.
If the issue remains, send us this information
With these details, we can check the relevant connection, measurement, or storage stage without asking you to repeat the same information.
Contact us about Newert Health
